Fireplace boiler insert
AQUAFLAM  7
AQUAFLAM fireplace boiler inserts from HS Flamingo have many above-standard features. The primary benefit of these innovative features is that they simplify the operation of the stove. Only the finest materials are used in their production.
secondary combustion
Ensures a clean glass and perfect combustion of gases thanks to a special inlet for secondary and tertiary air
firebrick-free technology
due to the absence of a firebrick lining, there is a larger surface area for increased water heating efficiency
safety cooling loop
A safety feature against overheating
Eko-Air-In - External air inlet
This innovative feature delivers high efficiency, up to a 40% reduction in fuel consumption
dual air wash of glass
Dual air wash of glass using preheated air
- Secondary combustion ensures a clean glass and perfect combustion
- Firebrick-free technology with increased water heating efficiency
- A Safety Cooling Loop against overheating
- External air inlet - up to a 40% reduction in fuel consumption
- Dual air wash of glass using preheated air
To ensure the safety of our customers, we have equipped these fireplace boiler inserts with a cooling loop as standard as well as basic and automated regulation, which provide further heating safety.
For example, thanks to the emergency overheating shut-off damper and the permanently open tertiary air inlet, which prevents gas from building up in the combustion chamber, AQUAFLAM fireplace boiler inserts meet the strictest European standards – BImSchV – Stufe 2, DINplus, Flamme Verte.

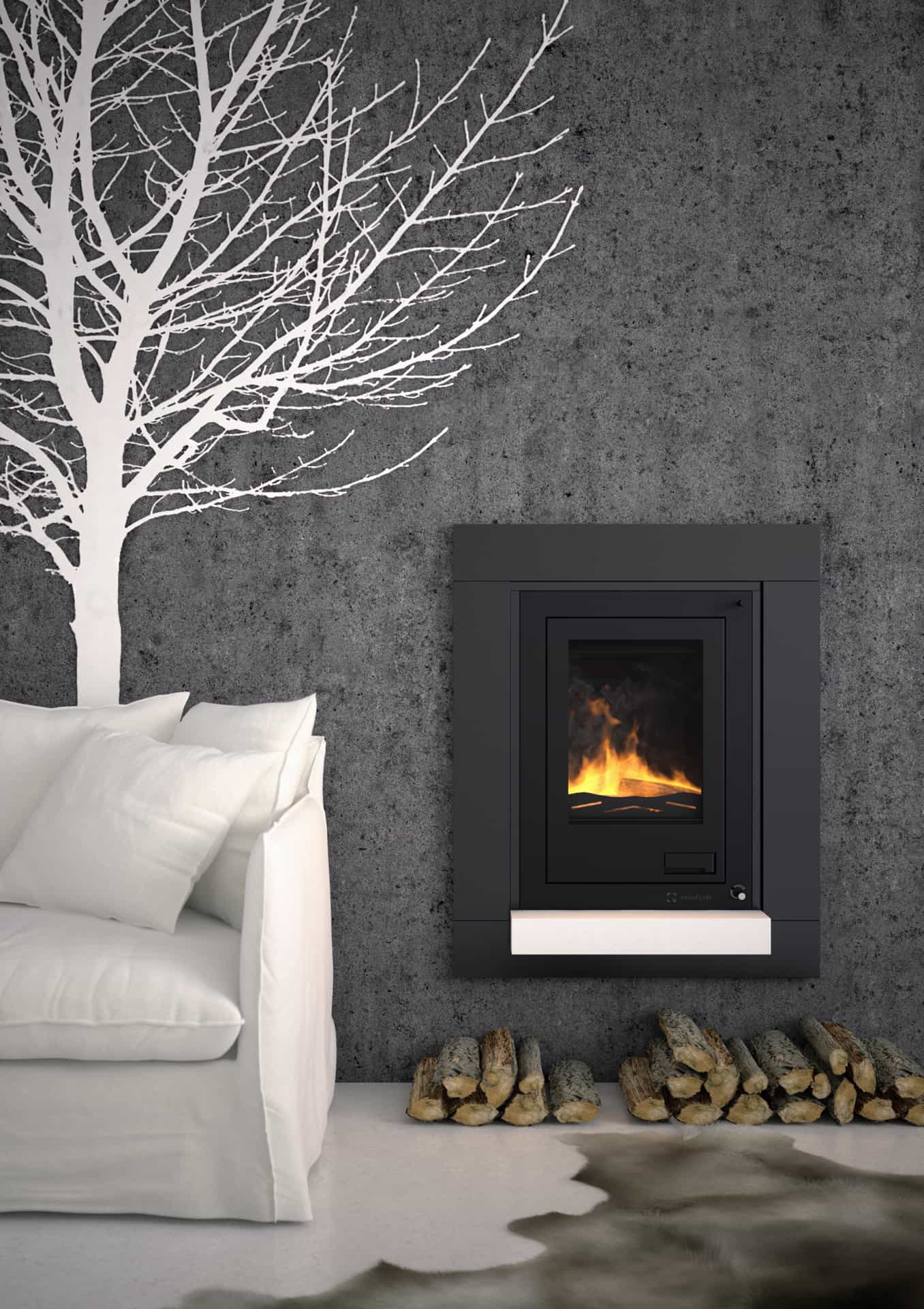

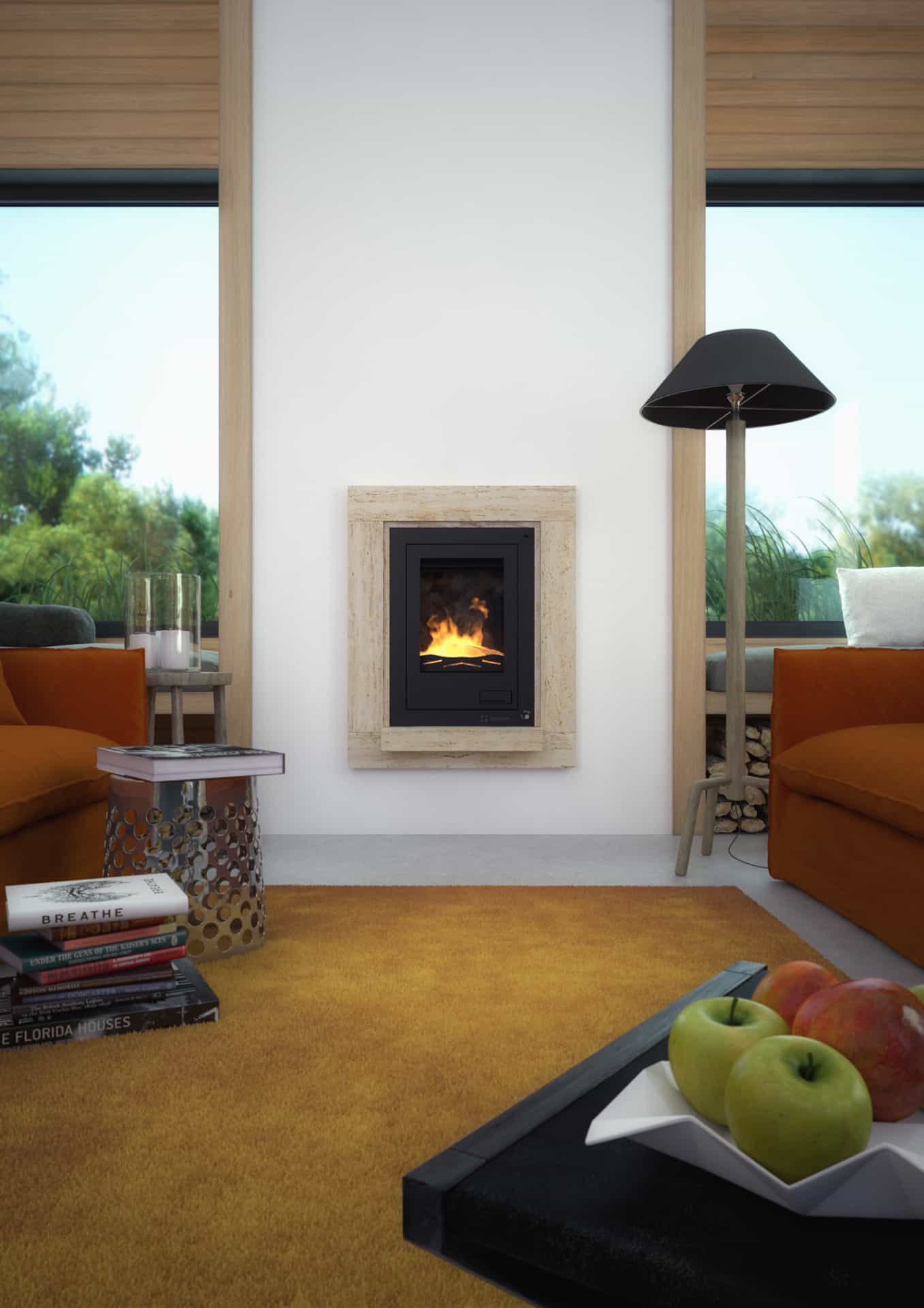

FIRESIDE COVER OF AQUAFLAM INSERTS

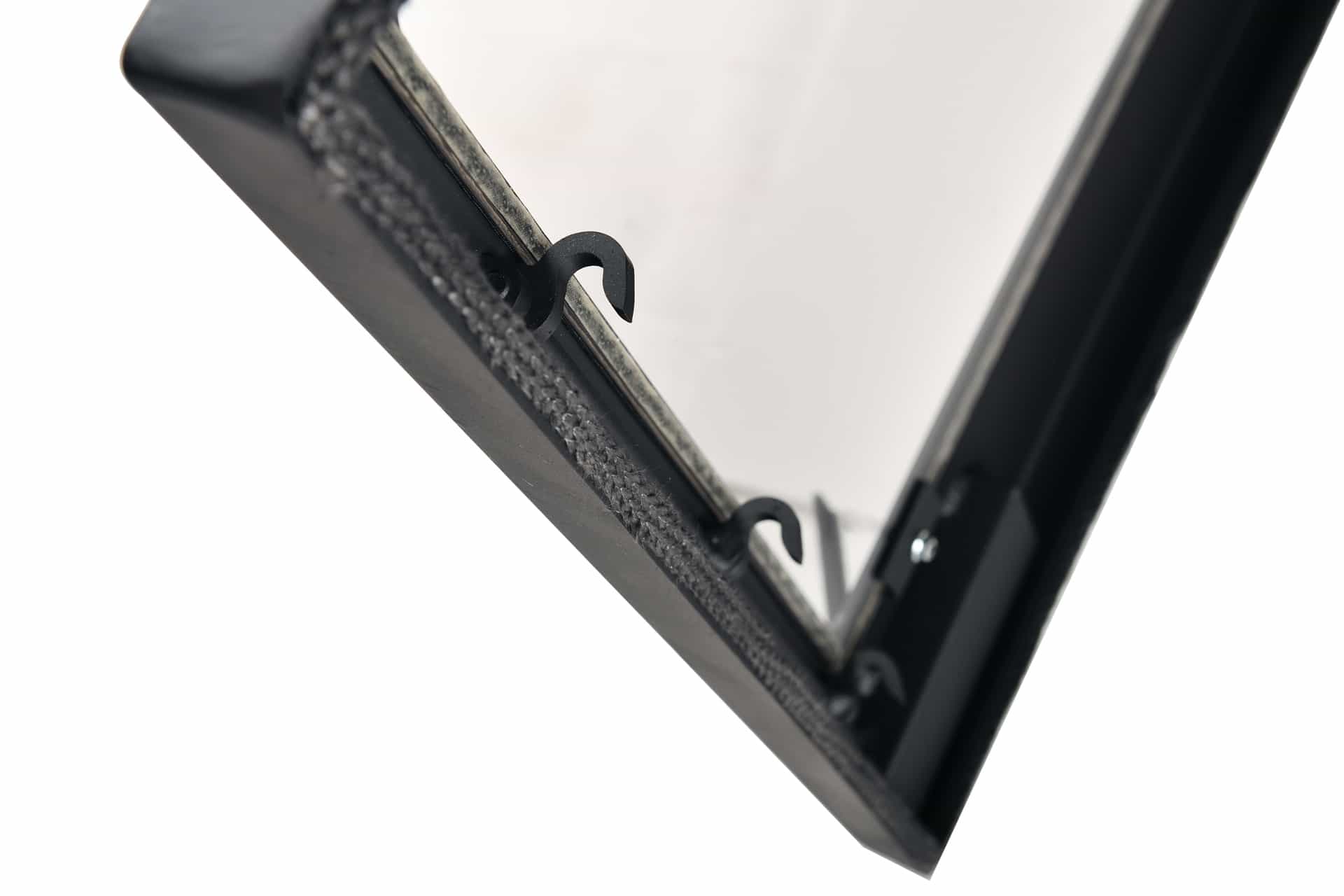

TYPES OF GLASS
Modern look with three types of glass
Secondary combustion – ensures a clean glass and perfect combustion of gases thanks to a special inlet for secondary and tertiary air / Dual air wash using preheated air / Firebrick-free technology – due to the absence of a firebrick lining, there is a larger surface area for increased water heating efficiency / Cooling Loop – a safety feature against overheating / External air inlet – Eko-Air-In System damper for regulating the chimney draught / Hot and cold water outlets on both sides / Three types of regulation – manual, basic electronic and automated / Three types of glass – panoramic, prismatic, flat
CROSS SECTION OF THE COMBUSTION CHAMBER
TECHNICAL PARAMETERS
Aquaflam 7 | Flat | Panoramic | Prismatic |
|---|---|---|---|
Nominal power [kW] | 7 | 7 | 7 |
Nominal power into water [kW] | 5 | 5 | 5 |
Nominal power range [kW] | 3 – 10 | 3 – 10 | 3 – 10 |
Power into water range [kW] | 3 – 7 | 3 – 7 | 3 – 7 |
Stove efficiency [%] | 79,1 | 79,1 | 79,1 |
Smoke flue diameter [mm] | 160 | 160 | 160 |
Weight [kg] | 130 | 133 | 138 |
Log lenght [cm] | 35 | 35 | 35 |
Heating value [m3/h] | 60–200 | 60–200 | 60–200 |
CO emissions at 13% O2 [%] | 0,1 | 0,1 | 0,1 |
Average flue gas temperature [°C] | 247 | 247 | 247 |
Volume of heat exchanger [l] | 22 | 22 | 22 |
Maximum operating pressure [bar] | 2,5 | 2,5 | 2,5 |
We meet the standards: EN 13240, BlmSchV, Stufe 2, Ekodesign | Yes | Yes | Yes |
Warranty | 5 years | 5 years | 5 years |
Czech Product - Gold medal
Our Czech products are sold all over the world. They are exclusively produced by the Czech HS Flamingo team.
COMBUSTION CONTROL
Combustion Control - Manual
- operates without electricity
- controlled using a rod
- for those who prefer the classic style
- pull towards you to open the air inlet
Combustion Control - Basic
- simple to control directly on the insert
- can be connected to the mains with an external AC 230V/DC6V power supply (Product code: HSF17-196), eliminating the need to use and then replace 4 AA-LR6 batteries
- safety sensor that closes the damper in the event of overheating
- powered by long-life batteries
- overheating warning sound
Combustion Control - Automated
- simple user interface
- graphical display of sensors, pumps and temperatures
- easy installation and connection
- control of other heat sources
- control up to three pumps
- summer / winter heating modes
