Wood Boiler Stove AQUAFLAM VARIO®
BARMA
AQUAFLAM VARIO is the new member to the product range from HS Flamingo s.r.o. A state-of-the-art wood boiler stove that meets the requirements of even the most demanding customers. Highly effective and environmentally friendly. Secondary combustion technology with an efficiency exceeding 80%. A unique solution providing a simple transition from heating using water to heating with hot convection air.
secondary combustion
Ensures a clean glass and perfect combustion of gases thanks to a special inlet for secondary and tertiary air
tertiary air supply
a third air supply for the combustion of gaseous particle
safety cooling loop
A safety feature against overheating

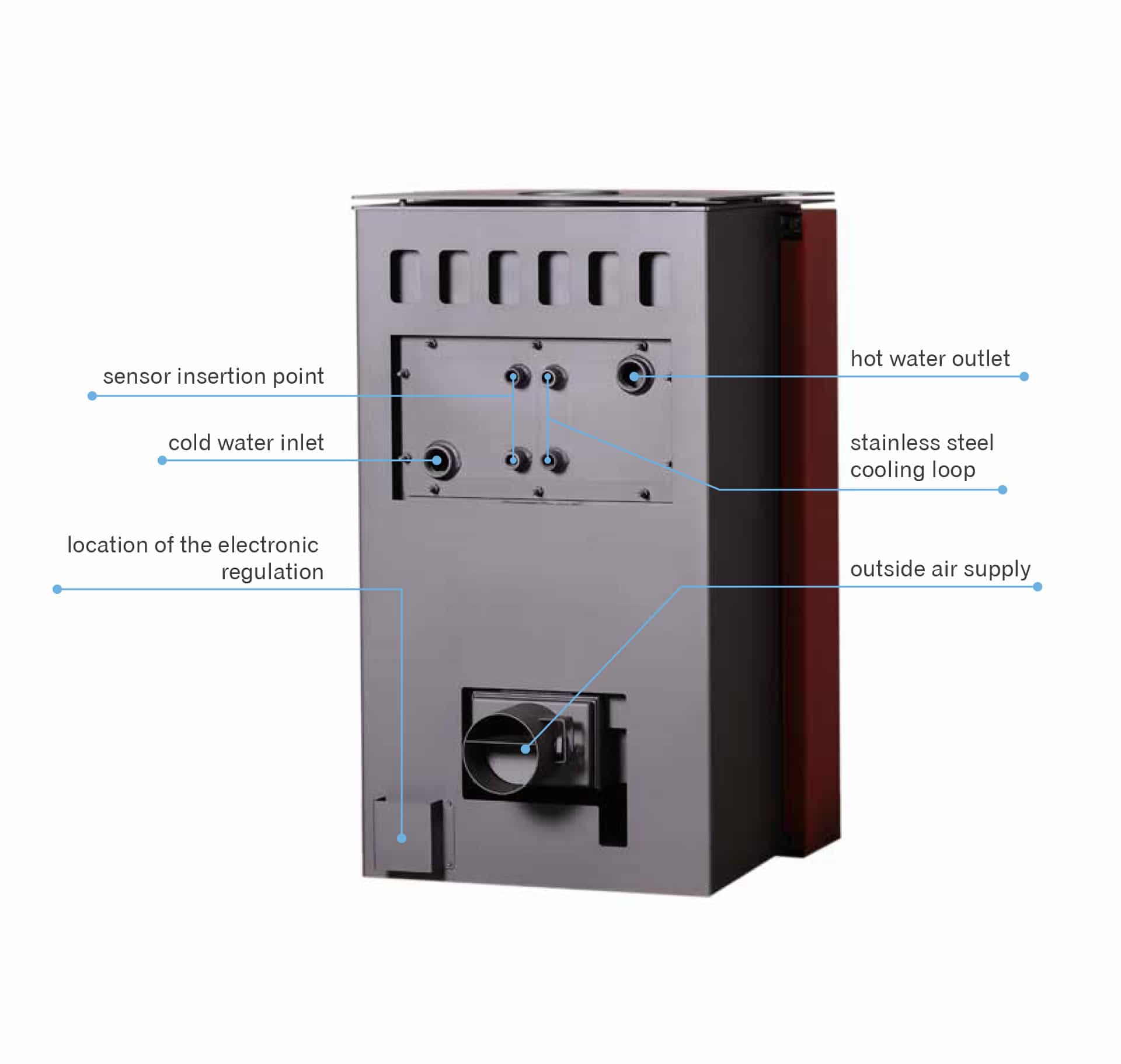

Eko-Air-In - External air inlet
This innovative feature delivers high efficiency, up to a 40% reduction in fuel consumption

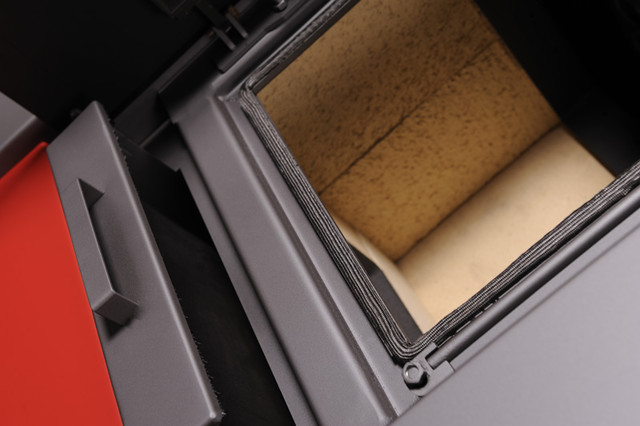

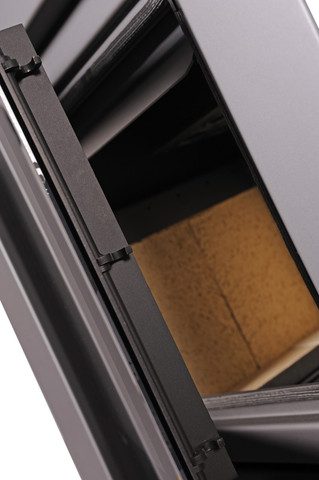

gasket cord with a protective layer
it really handles what no other can
- Secondary combustion ensures a clean glass and perfect combustion
- Tertiary air supply for the combustion of gaseous particle
- A Safety Cooling Loop against overheating
- External air inlet - up to a 40% reduction in fuel consumption
- Gasket cord with a protective layer really handles what no other can
Made from the best quality materials, using a technology that meets the strictest European norms. A cooling loop that protects against overheating is included as standard. Tertiary air supply for perfect combustion and a continuous supply of air. There is, of course, an option to connect outside air to the stove. The optional integrated electronic air supply regulation automatically protects against overheating.

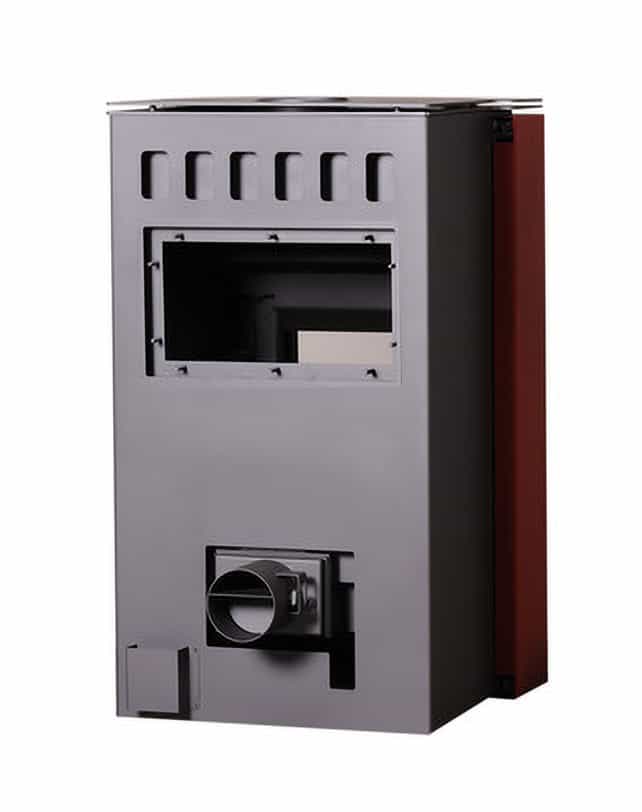

You can choose how you will operate your wood stove. Two heat exchanger power outputs and the option to operate the stove in full convection mode is Aquaflam VARIO!
BARMA IN THE INTERIOR

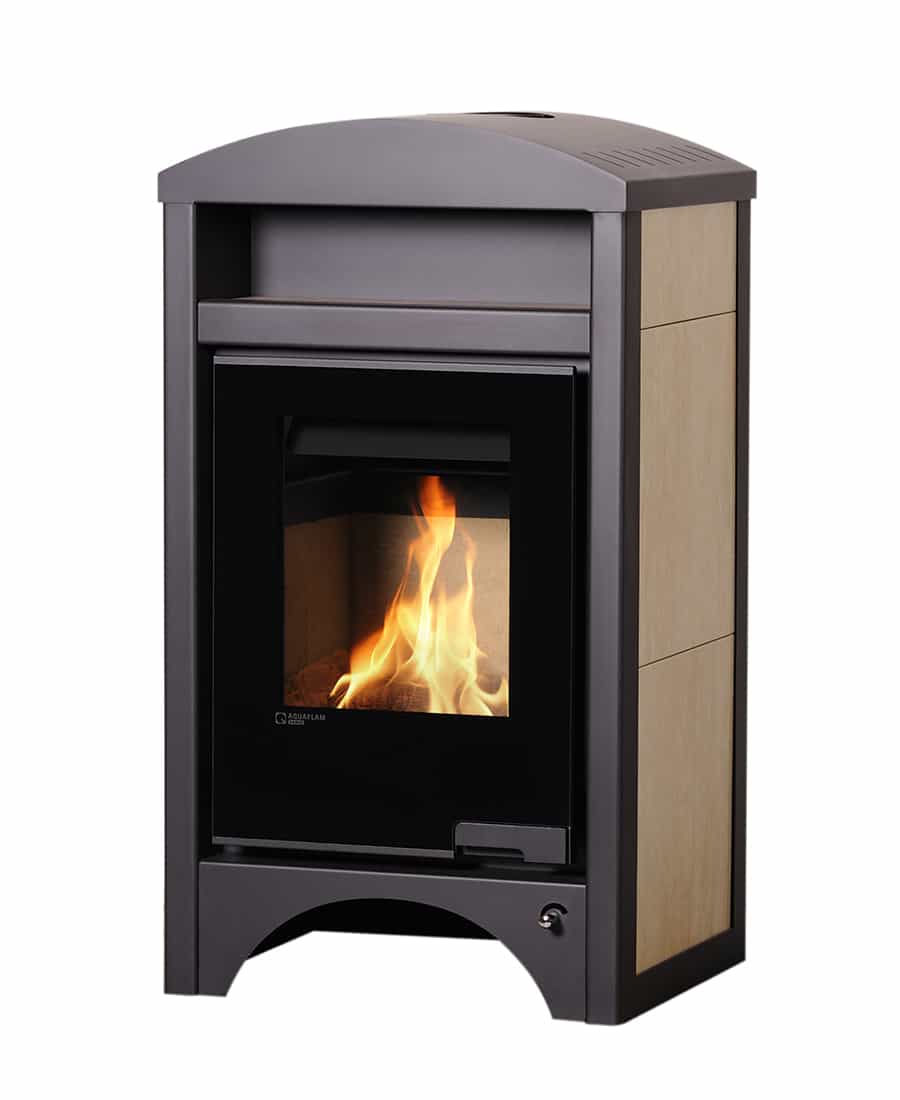

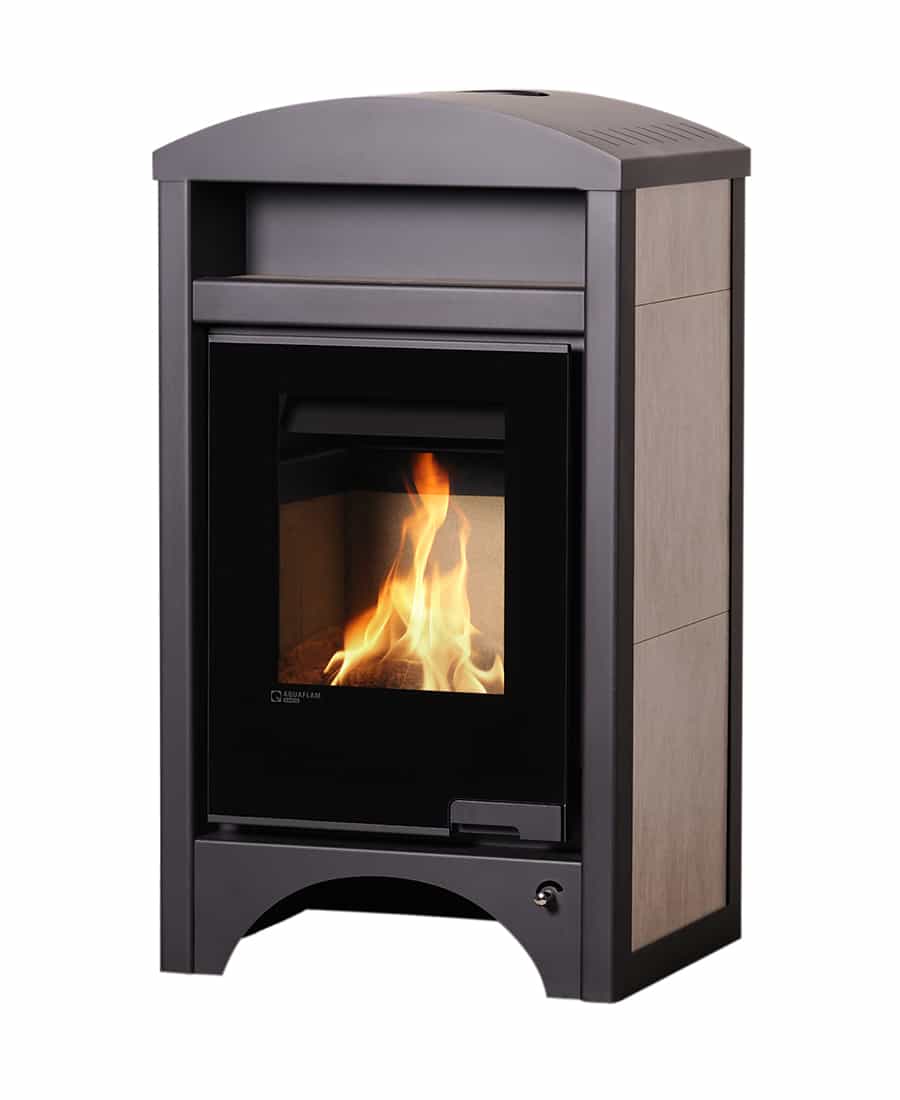

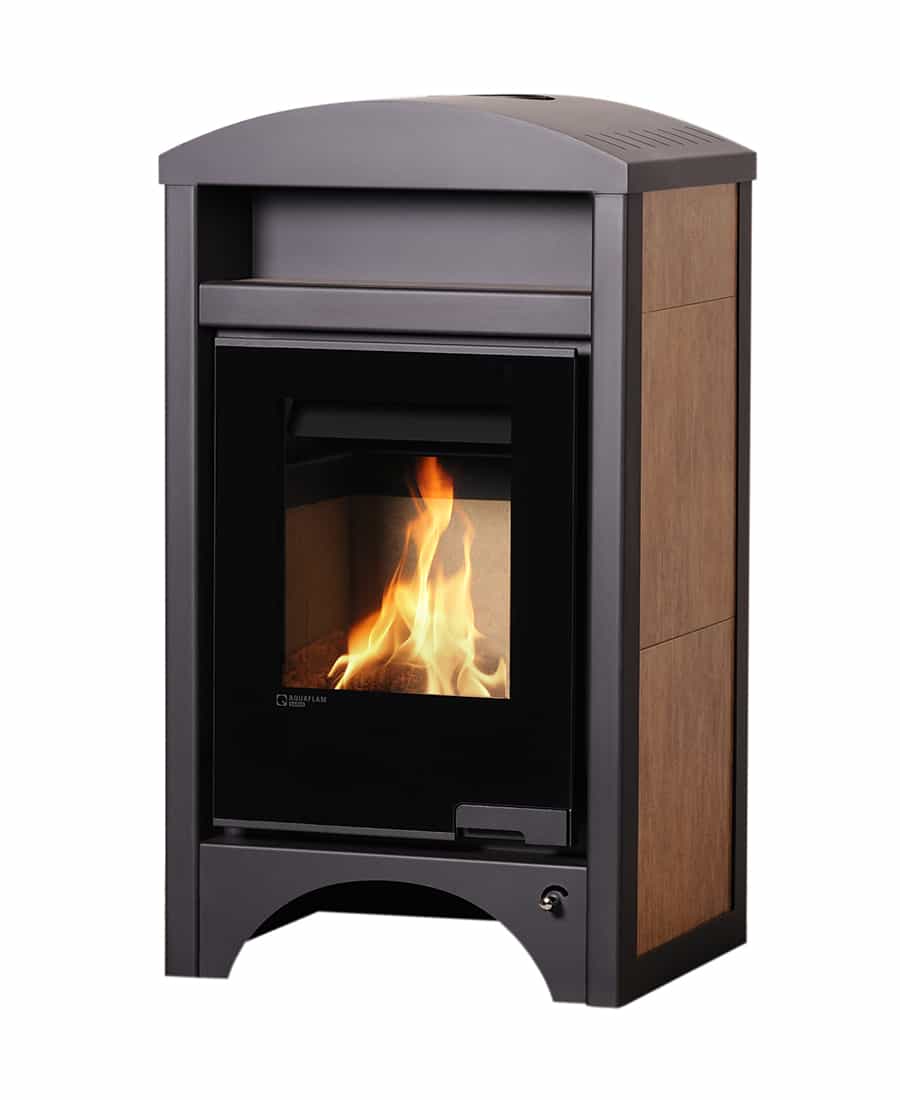

COLOUR OPTIONS
Traditional look in three natural colors.
Convection wood stove – fast heat transmission method using the circulation of air under the wood stoves outer casing / Quality Czech firebrick – accumulates heat and intensifies the experience provided by the fire / Reliable Three-point locking system / Comes with 5 years warranty

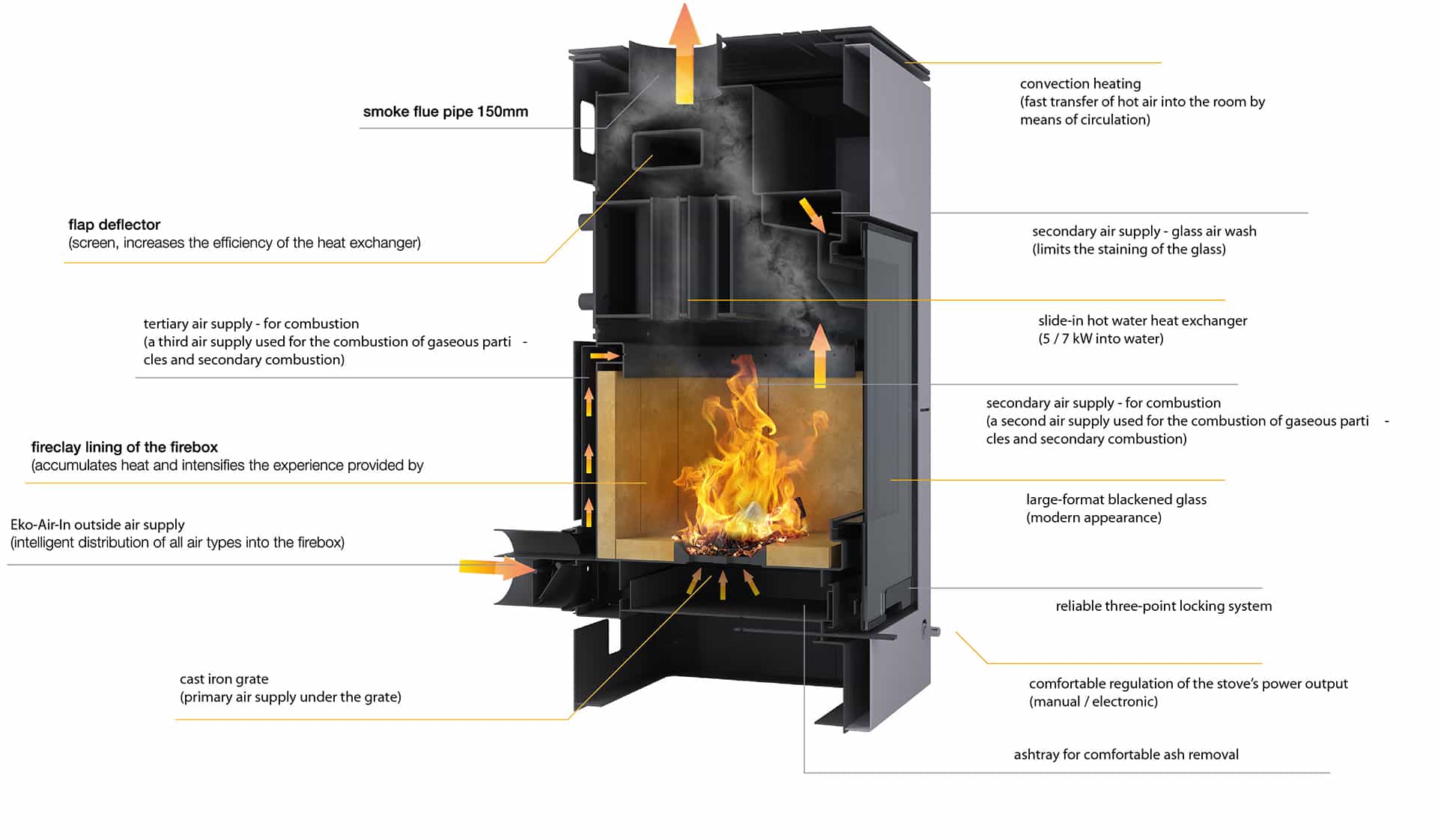

CROSS SECTION OF THE STOVE
TECHNICAL PARAMETERS
Aquaflam VARIO – SAPORO | Air 11 kW / Water 5 kW | Air 11 kW / Water 7 kW | Air 11 kW |
|---|---|---|---|
Nominal power [kW] | 11 | 11 | 11 |
Nominal power into water [kW] | 5 | 7 | – |
Nominal power range [kW] | 7 – 15 | 7 – 15 | 7 – 15 |
Power into water range [kW] | 3 – 9 | 5 – 11 | – |
Fuel consumption [kg] | 3,2 | 3,4 | 3,0 |
Stove efficiency [%] | 80,22 | 80,27 | 80,90 |
Smoke flue diameter [mm] | 150 | 150 | 150 |
Log lenght [cm] | 40 | 40 | 40 |
Heating value [m3/h] | 140–300 | 140–300 | 140–300 |
CO emissions at 13% O2 [%] | 0,096 | 0,096 | 0,096 |
Average flue gas temperature [°C] | 273 | 267 | 293 |
Volume of heat exchanger [l] | 10,2 | 8,7 | – |
Maximum operating pressure [bar] | 2,5 | 2,5 | – |
Standards: EN 13240, BlmSchV – Stufe 2, Ekodesign | Meet | Meet | Meet |
Warranty | 5 years | 5 years | 5 years |
Czech Product - Gold medal
Our Czech products are sold all over the world. They are exclusively produced by the Czech HS Flamingo team.
COMBUSTION CONTROL

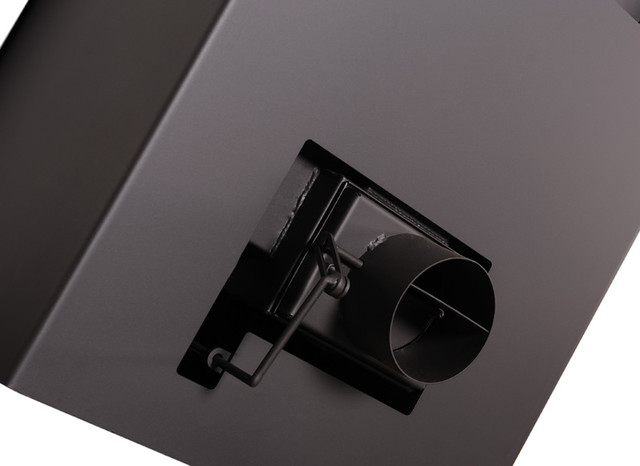

Combustion Control - Manual
- operates without electricity
- controlled using a rod
- for those who prefer the classic style
- pull towards you to open the air inlet

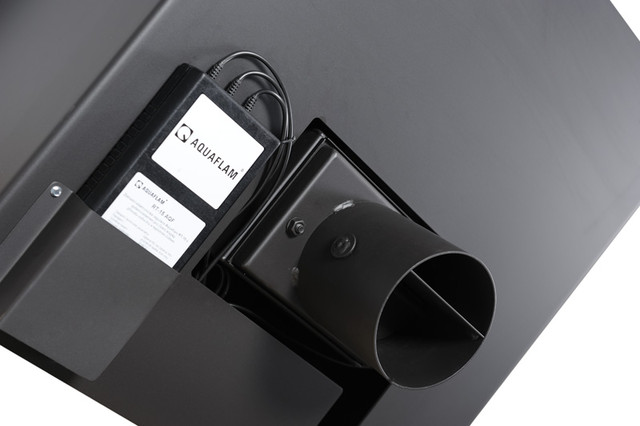

Combustion Control - Basic
- simple to control directly on the insert
- no connection to the power grid necessary
- safety sensor that closes the damper in the event of overheating
- powered by long-life batteries
- overheating warning sound
